IP addressing and subnetting are central to this communication, and they play a critical role in ensuring efficient network management, performance optimization, and security. IP addressing provides a unique identifier for devices on a network, allowing them to communicate effectively, while subnetting divides larger networks into smaller, manageable segments.
This segmentation not only enhances performance by reducing congestion but also improves security by limiting access to sensitive data. As networks grow and become increasingly complex, mastering IP addressing and subnetting becomes crucial for optimizing resources, maintaining seamless connectivity, and safeguarding against potential threats.
Difference Between IPv4 and IPv6
The two versions of IP addresses most commonly used today are IPv4 and IPv6.
- IPv4 (Internet Protocol version 4): This is the most widely used format and consists of four sets of numbers separated by periods (e.g., 192.168.1.1). IPv4 provides approximately 4.3 billion unique addresses, which is no longer sufficient given the exponential growth of internet-connected devices.
- IPv6 (Internet Protocol version 6): To address the limitations of IPv4, IPv6 was developed. It uses a much larger address space with hexadecimal numbers separated by colons (e.g., 2001:0db8:85a3:0000:0000:8a2e:0370:7334). IPv6 can support an almost infinite number of devices, making it the future of IP addressing.
This article will focus on IPv4 addressing.
What is IP Addressing?
IP addressing refers to the system used to assign unique identifiers to devices on a network. Every device that connects to the internet or a local network requires an IP (Internet Protocol) address to communicate.
IP addresses are crucial because they help route data from one device to another, ensuring that packets of information reach the correct destination.
In simple terms, an IP address is like a home address for devices in a network, allowing them to send and receive data accurately.
Example of IP Addressing:
Every house on your street has a street number: 123 FIrst street
This street number is used by the US postal service, delivery drivers, and police and fire to make sure that everyone knows your unique “address”. Nobody has the same address on your street.
What is Subnetting?
Subnetting is the process of dividing a large network into smaller, more manageable sub-networks, or "subnets." By breaking a network into subnets, organizations can efficiently allocate IP addresses, optimize network performance, and enhance security.
Each subnet operates as its own smaller network, reducing congestion and improving overall efficiency.
Example of Subnetting
If you needed to add 10,000 more houses to our city, you wouldn’t want to put them on the same street – you’d have a VERY long street.
The solution to this is to create more streets, and cut them up into manageable chunks that are logical.
Maybe you have 300 houses on Frist street, and 400 houses on Second street, etc.
With this type of design, every house is still completely unique, you just need a street name and the street number.
Why is Subnetting Important in Networking?
Subnetting is essential for several reasons:
- Efficient IP Management: Subnetting helps prevent the exhaustion of IP addresses by dividing large networks into smaller segments, allowing more precise allocation of IPs.
- Performance Optimization: By creating smaller, segmented networks, data traffic is reduced, leading to improved performance and minimized network congestion.
- Enhanced Security: Subnetting allows organizations to isolate critical systems and data into secure subnets, reducing the risk of unauthorized access.
Understanding IP Address Classes and Ranges
IP addresses are divided into five classes, each designed for different network sizes and use cases.
- Class A: Supports large networks (1.0.0.0 to 126.255.255.255).
- Class B: For medium-sized networks (128.0.0.0 to 191.255.255.255).
- Class C: For smaller networks (192.0.0.0 to 223.255.255.255).
- Class D: Reserved for multicasting (224.0.0.0 to 239.255.255.255).
- Class E: Reserved for experimental purposes (240.0.0.0 to 255.255.255.255).
To determine the network and host portions of an IP address, subnet masks are used. The network portion identifies the specific subnet, while the host portion identifies individual devices within that subnet.
How to Subnet a Network
Subnetting a network involves a step-by-step process:
- Determine the number of required subnets: Identify how many subnets are needed based on organizational requirements.
- Calculate the subnet mask: Use CIDR (Classless Inter-Domain Routing) notation to calculate the correct subnet mask (e.g., /24).
- Divide the network: Based on the subnet mask, break the larger network into smaller subnets.
- Assign IP addresses: Allocate the appropriate IP ranges to each subnet.
Understanding CIDR notation is essential for this process. For example, a /24 network allows for 256 IP addresses, while a /28 network allows for only 16 IP addresses.
For this sample subnet you will have 256 IP addresses, but there are addresses that cannot be used. For example, you cannot use the .0 address (ex: 192.168.1.0) as an address, as it is the network “name”.
You also cannot use the broadcast address. This is the highest address in the range (ex: 192.168.1.255) as this address is used to address all of the computers on that subnet.
As a result of the above two, there are now only 254 usable IP addresses in this subnet.
You will also need to reserve one IP address as the router to get to other subnets. Typically, most people reserve the first address for the router: 192.168.1.1.
Thus, for client computers, there are only 253 IP addresses that can be allocated.
Calculating Subnet Masks and IP Ranges

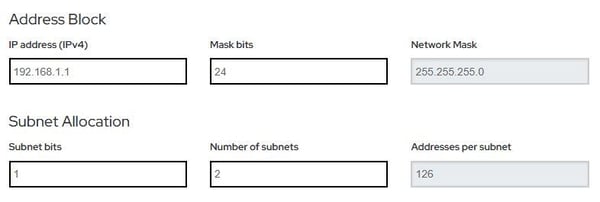

To calculate subnet masks, follow these steps or use the PathSolutions subnet calculator:
- Step 1: Identify the required number of subnets and hosts.
- Step 2: Use the formula 2^n (where n is the number of bits borrowed) to calculate the number of subnets.
- Step 3: Calculate the valid IP range for each subnet, ensuring the network and broadcast addresses are excluded.
For example, if you're subnetting a /24 network into smaller subnets, a /28 mask would allow for 16 IP addresses, with 14 usable for hosts.
Best Practices for Subnetting in Large Networks for Enterprise
Subnetting in large networks can be challenging. Here are some best practices to consider:
- Efficient IP management: Use hierarchical subnetting to allocate IPs based on organizational structure (e.g., departments or locations).
- Security-focused subnetting: Implement subnetting as part of your security strategy to isolate sensitive data or critical systems.
- Regular audits: Continuously monitor and audit IP address allocations to ensure efficient usage.
Common Subnetting Mistakes and How to Avoid Them
Some common mistakes in subnetting include:
- Overlapping subnets: Ensure that subnets are properly segmented to avoid conflicts.
- Inaccurate subnet mask calculations: Double-check calculations to prevent misallocation of IP addresses.
- Wasting IP addresses: Optimize IP usage by selecting subnet sizes that closely match your needs.
Avoid these mistakes by carefully planning and reviewing your subnetting strategy.
Conclusion
Understanding IP addressing and subnetting is essential. Mastering subnetting helps optimize network performance, enhance security, and efficiently manage IP addresses. By following best practices, avoiding common mistakes, and using the right tools, you can further improve your network’s functionality and security.
